Longacre

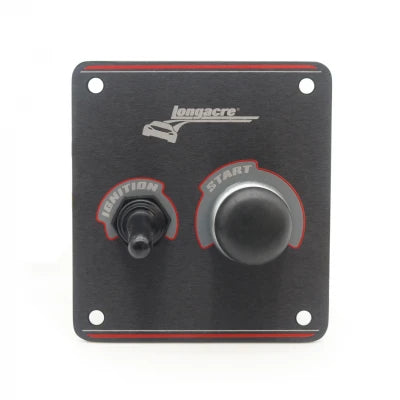

START / IGNITION SWITCH PANEL - LON-52-44861
START / IGNITION SWITCH PANEL - LON-52-44861
Regular price
$40.00 USD
Regular price
Sale price
$40.00 USD
Unit price
/
per
Couldn't load pickup availability
The Longacre Advantage
-
Weatherproof Covers
- Panel includes silicone rubber weatherproof ignition switch cover
-
Easy to Install
- Panel comes pre-wired for an easy installation - even easier with Heavy Duty Wiring Harness LON-52-44930.
- Panel can be mounted directly to your dash or to your roll bar with Mounting Brackets LON-52-22783 or LON-52-22787.
-
Matching Graphics
- Clean modern graphics match our 2015 gauge and battery disconnect panels
- High capacity (40 amp @ 12 volts DC) ignition switch with weatherproof cover
- Starter button with weatherproof cover
- Great looking Aluminum Panel - black anodized with clean, modern graphics
- Pre-wired with high insulation "Fat" wires and soldered terminals with heat shrink connections
- Plugs into Longacre wiring harness P/N LON-52-44930
- Mounts to 1-3/4" or 1-1/2" roll bar with Longacre Bolt-On Mounting Brackets P/Ns LON-52-22783 or LON-52-22787
| Specifications | |
|---|---|
| Ignition Switch | |
| Style: | Toggle |
| Cover: | Weatherproof silicone rubber |
| Pilot Light Included: | No |
| Rating: | 40 amps @ 12 volts or 20 amps @ 110 volts |
| Starter Switch | |
| Style: | Push button |
| Cover: | Weatherproof rubber |
| Rating: | 15 amps @ 12 volts resistive |
| Panel | |
| Material: | Lightweight aluminum |
| Finish: | Black anodized |
| Panel Dimensions: | 3 3/8" x 3 5/8" |
| Wiring Included: | Yes |
