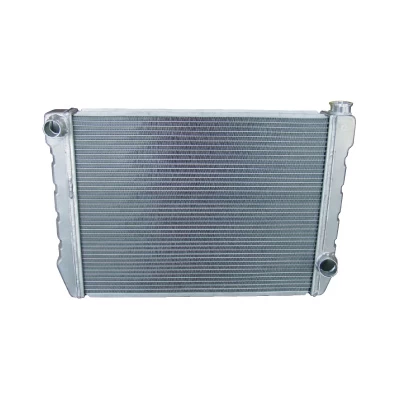

Pro-Tek Extreme Radiator 19"x26"

Pro-Tek Extreme Series Radiators are all aluminum without epoxy and include stamped and reinforced aluminum tanks for durability. This radiator is designed with a double core made of high capacity 1” aluminum tubes for greater cooling and solid side channels, mounting flanges for maximum strength and flexibility to mount anywhere, and a billet aluminum filler neck for durability. Comes standard with 1-1/2” inlet and 1-3/4” outlet.

Chevy style radiators have the inlet on the left (driver) side and outlet on the right (passenger) side while the Ford style is opposite. Chevy double pass radiators have the inlet and outlet on the right (passenger) side.

• Single, double, or triple pass options available.
• Chevy or Ford Styles (Ford style only available in single pass.)
• Height: 19”
• Available in Widths of 22”, 24”, 26”, 28”, or 31” (outside of tank to outside of tank)
• All aluminum construction.
• 1/8" NPT to 1/4" Tube overflow fitting
• 1-1/2” inlet
• 1-3/4” outlet
• Double row core of 1" tubes
